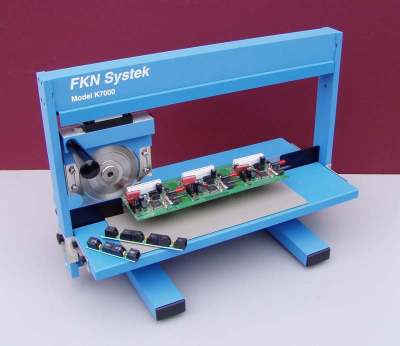

All of the K series depanelizers use the same principle of circular blade on circular blade or circular blade on linear blade operation to separate the panels by applying pressure along the remaining material of a scoreline. The blades for the K1000 to the K6000 are flat on one side, so boards with components up to the edge of the scoreline can be separated. The K7000  has extra thin blades for boards with very tight component spacing.

Circular Blade Depanelizers

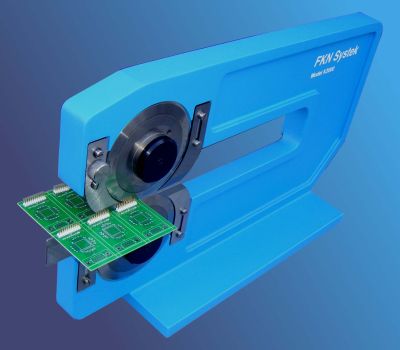

K1000 Manually Operated Circular on Circular blade depanelizer cuts PCBs up to 12.5" long.

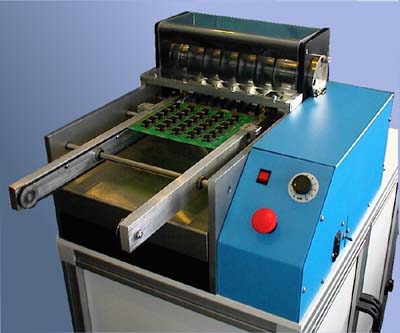

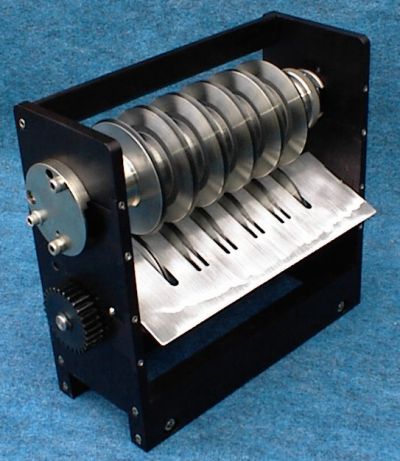

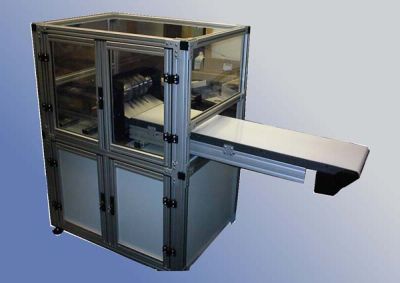

Multiple Blade PCB Singulation for high volume production

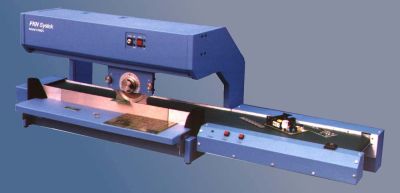

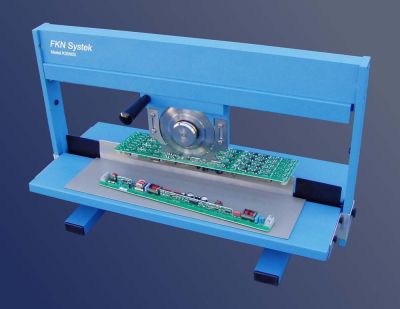

Circular/Linear Blade PCB   Singulation





 K Series  Circular Blade Depanelizers for Pre-Scored Boards
