K 4000 Motorized Circular Linear Blade Depanelizers for V Scored PCBs
The K4000 is a motorized circular linear blade depanelizer designed to make singulating V-Scored printed circuit cards easy. Available in 3 basic models with 18". 24" and 48" long linear blades, it can be used to separate a variety of printed circuit cards made of FR4. For Alu cor V-Scored PCBs there is an optional 3 circular blade carriage which can be fitted to the K4000L or K4000L48
The operator places the score-line of the PCB onto the linear blade and steps on a foot pedal, actuating the cutting process by bringing the circular blade across the score-line.
K4000

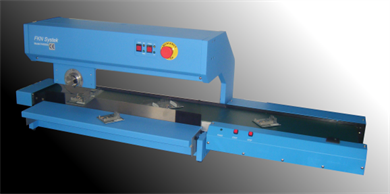

The standard K4000 is available with a 18" Linear blade for singulating panels up to 18" long. The optional conveyor will bring singulated panels out to the side. A laser at the end of the conveyor allows scrap strips to be dropped into a scrap container.
For best results
the Blade Gap
can be adjusted precisely by rotating the blade offset Camshaft.
the Blade Gap
can be adjusted precisely by rotating the blade offset Camshaft.
For additional safety, the K4000 is available with a light beam safety guard across the front of the linear blade.
K4000L

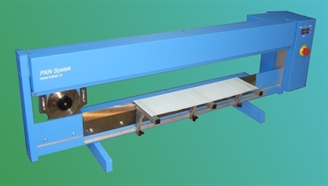

The K4000L will singulate panels up to 24" Long. The switch select control panel can be set for 2 operating speeds and for continuous or intermittend travel.
When set on intermittent mode the blade carriage stops when the operator removes pressure on the foot pedal.
When set on intermittent mode the blade carriage stops when the operator removes pressure on the foot pedal.
Power Input
Control Panel
The Switch select control panel sets operating speed and continuous or intermittent mode.
K4000L48
To singulate panels up to 48" long we offer the K4000L48. The front PCB support rails are adjustable for different length panels .
Right and left blade guards are set to allow score-line only to pass to the cutting blade. When set correctly the thicker panel will bump into the blade guard to prevent damage to the board
Singulating Aluminum V-Scored Panels
Optional Dust Extraction Vaccuum
Singulating Aluminum V-Scored Panels
Depaneling Aluminum LED boards can be done with a 3 blade set carriage which is available for the K4000L and K4000L48. The blades for singulating Alu boards are 2.25" in diameter.
The center blade is set to shear the metal and the front and back blades are set to squeeze the scoreline to a thin foil, making it easy for the center blade to finish separating the panels. This option is also available for the K3000L.
The center blade is set to shear the metal and the front and back blades are set to squeeze the scoreline to a thin foil, making it easy for the center blade to finish separating the panels. This option is also available for the K3000L.
-WEe9aaa51713.jpg)
Designed to reduce the possible
hazard of Fiberglass dust entering the
working environment, a dust extraction
vacuum and ducting is available.
A vacuum hose attached to a plenum on
the traveling circular blade carriage and
a screened dust extraction channel beneath the front support table help
hazard of Fiberglass dust entering the
working environment, a dust extraction
vacuum and ducting is available.
A vacuum hose attached to a plenum on
the traveling circular blade carriage and
a screened dust extraction channel beneath the front support table help
prevent any potential harmful particles from entering the workspace.
